KYDE 2PACK Mower Deck Spindle Bearing CSA205-16,Compatible withDixon 539115279 539102677 1701 Hustler Super Z,Exmark 513016, John Deere 8597,Replace 784223 077123

KYDE 2PACK Mower Deck Spindle Bearing CSA205-16,Compatible withDixon 539115279 539102677 1701 Hustler Super Z,Exmark 513016, John Deere 8597,Replace 784223 077123

Mower spindle bearing replacement Alternative mechanical model Compatible with Exmark 1-513016 513016 Husqvarna, Dixon 539115279 539102677 1701 Hustler Super Z BOBCAT/RANSOM 38348-01 BUNTON-GOODALL PL7323 CUB CADET 455102-R21 CUB CADET 586609-R92...
Availability: 3000 In stock

Order within the next hours minutes to receive it. Estimated delivery is between and

Taxes, discounts and shipping calculated at checkout.
$15.99
$15.99 $15.99
CSA205-16: Standard Quality
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
>
FAST & TRANSPARENT SHIPPING 4-10 day delivery within USA & Canada.
>
EXPERT TECHNICAL SUPPORT 20+ years of industrial bearing expertise. Our engineering team is ready to solve your application challenges.
>
SECURE CHECKOUTS Fully encrypted payments via PayPal, Apple Pay, and Google Pay. Your data protection is our priority.

Strategic Product Selection: Standard vs. Premium Series

To provide the most cost-effective solutions for diverse engineering requirements, we offer two distinct performance tiers. Choosing the right grade ensures optimal machine performance and maximizes your ROI.

Quick Comparison Table

Feature Standard Series Premium High-Precision Recommended
MaterialGCr15 Steel (Industrial Grade)High-Purity GCr15 (Refined Processing)
Precision ClassISO P0 / ABEC-1ISO P6 / P5 (ABEC-3 / ABEC-5)
Speed Rating500 – 1,000 RPM2,500 – 10,000 RPM
Noise & VibrationZ0 - Z1 (Standard)ZV2 - ZV3 (Ultra-Quiet/EMQ)
Service LifeStandard LifecycleExtended Life (2-3x MTBF)
ConsistencyHigh Value / Cost-EffectiveRigorous Quality Control & Stability
Which Series is Right for Your Application?

1. The Standard Series

Best for Low-Speed & Budget-Conscious Projects

  • Ideal for: Simple mechanical assemblies, manual equipment, and low-load applications.
  • The Advantage: Provides a reliable, industry-standard solution at a competitive price point where high precision is not a critical requirement.

2. The Premium High-Precision Series

Best for High-Performance & Critical Machinery

  • Ideal for: Electric motors, high-speed CNC spindles, automated production lines, and precision instruments.
  • The Advantage: Engineered for high-speed stability and minimal friction. ZV2-ZV3 vibration rating ensures quiet operation and significantly reduces downtime (Lower Total Cost of Ownership).
Why We Offer Two Tiers?
We understand that over-engineering leads to unnecessary costs, while under-engineering leads to failure. By providing both Standard and Premium options, we empower our clients to match the component performance strictly to their specific technical needs—optimizing both budget and machine reliability.

Mower spindle bearing replacement

Mower spindle bearing replacement

Alternative mechanical model

  • Compatible with Exmark 1-513016 513016 Husqvarna, Dixon 539115279 539102677 1701 Hustler Super Z
  • BOBCAT/RANSOM 38348-01
  • BUNTON-GOODALL PL7323
  • CUB CADET 455102-R21
  • CUB CADET 586609-R92
  • CUB CADET 60069-C91
  • CUB CADET 60071-C91
  • CUB CADET 60071-C92
  • Description : Fits spindle assembly on 30″, 42″, 50″ cut ZTR.Also fits wheel hubs on Dixon ZTR with chain drive, replaces ,
  • No.RA100RR.BEARING RA100RRBOBCAT
  • B1SB8488 WALKER 5270WOODS HESSTON 60006 WOODS/HESSTON 70006 YAZOO 102677


Replacement of the main shaft bearing of the caster of the lawn mower

Caster Spindle Bearings

Alternative mechanical model

  • DIXIE CHOPPER 30218
  • DIXON 539115279
  • DIXON INDUSTRIES 539102677
  • DIXON INDUSTRIES 1701
  • EXMARK 1-513016
  • GRASSHOPPER 120081
  • HUSTLER 77123
  • HUSTLER 784223
  • John Deere Ball Bearing - JD8597Fits Front PTO Sheave on 300, 215, 214, 316 (-95000) Lawn and Garden Tractors; Spindle Bearings for M653, M655, M665 ZTrak
  • RANSOM 38348-01 DIXIE CHOPPER 30218DIXON 539115279DIXON
  • INDUSTRIES 1701DIXON INDUSTRIES 539102677 DIXON INDUSTRIES 539115279
  • OREGON 45-126 OREGON 45-225
  • PRIME LINE 7-04171 STENS 225-217


csa205-16 bearing

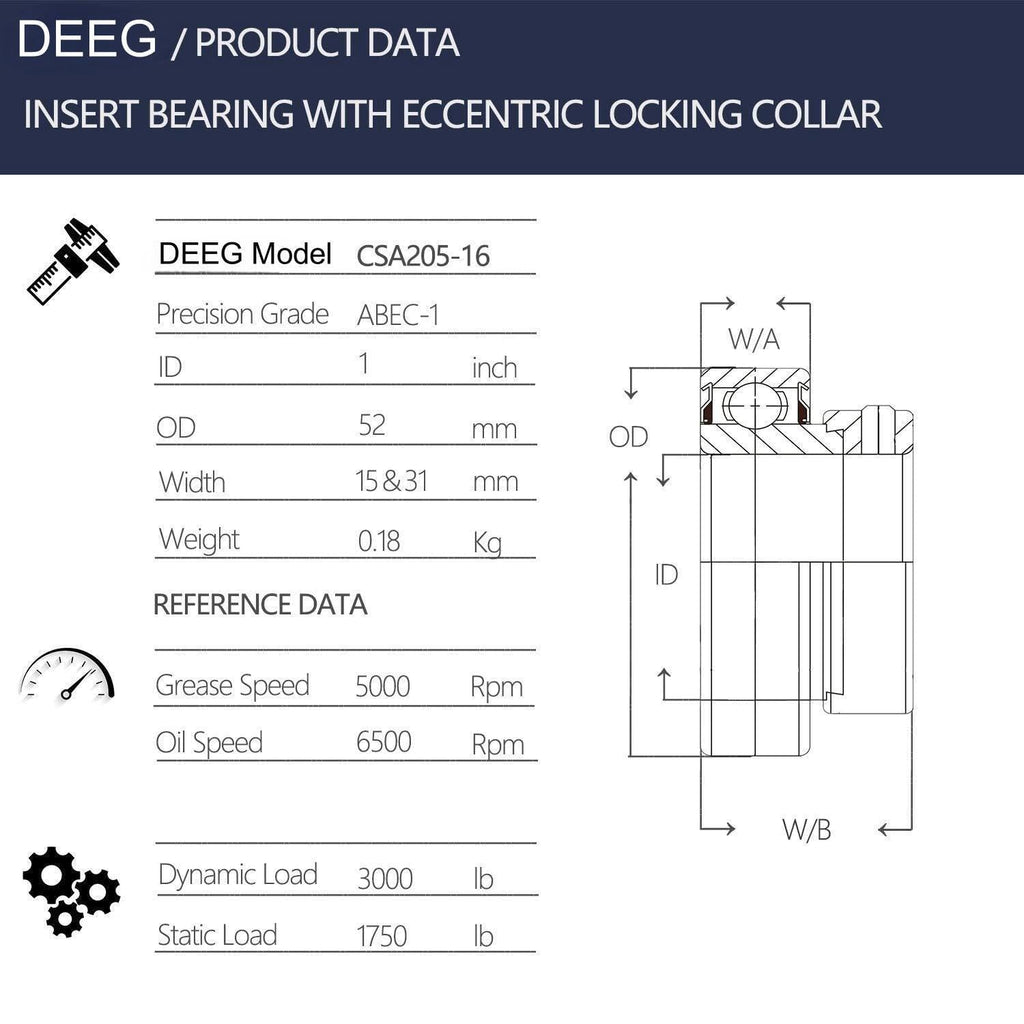

CSA205-16 size

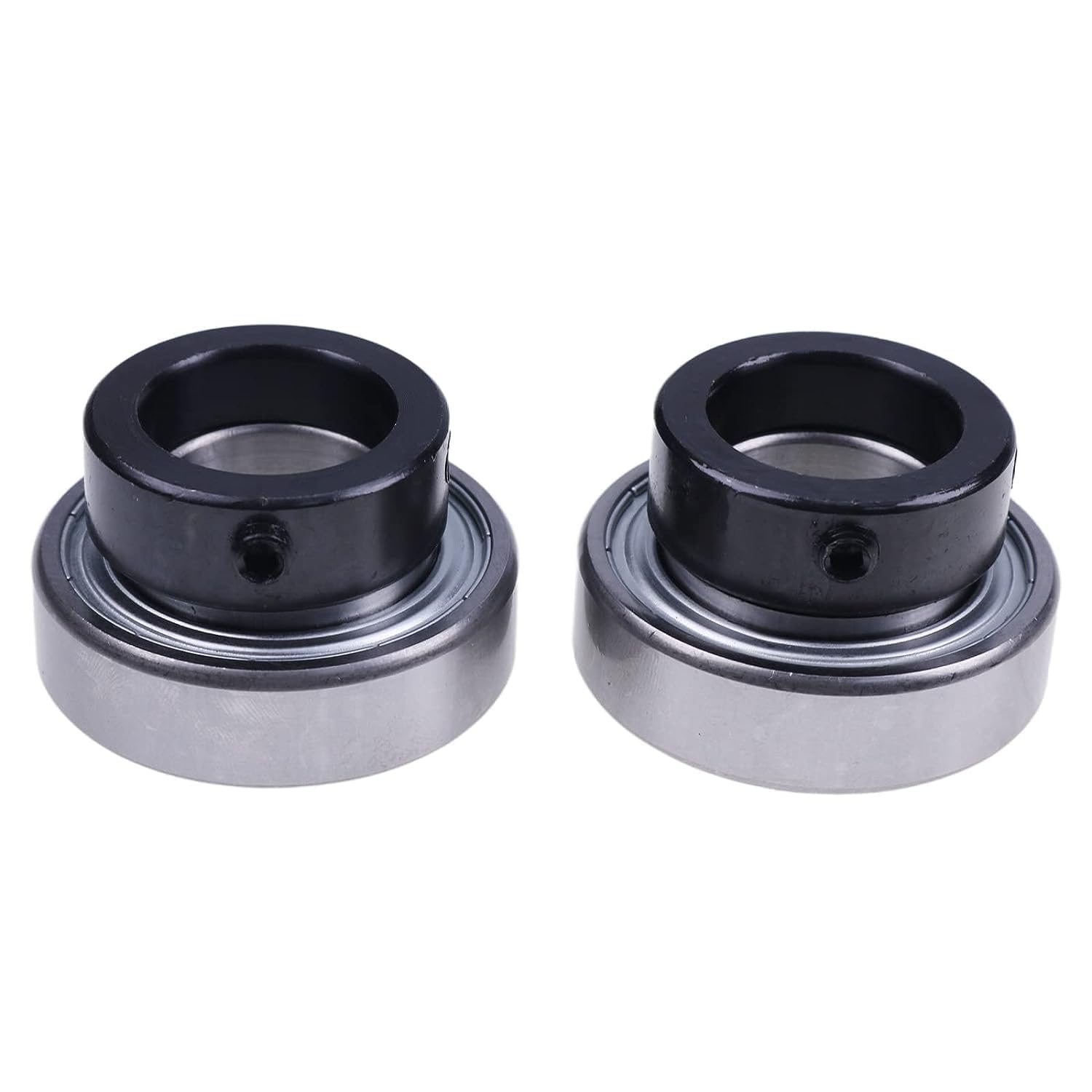

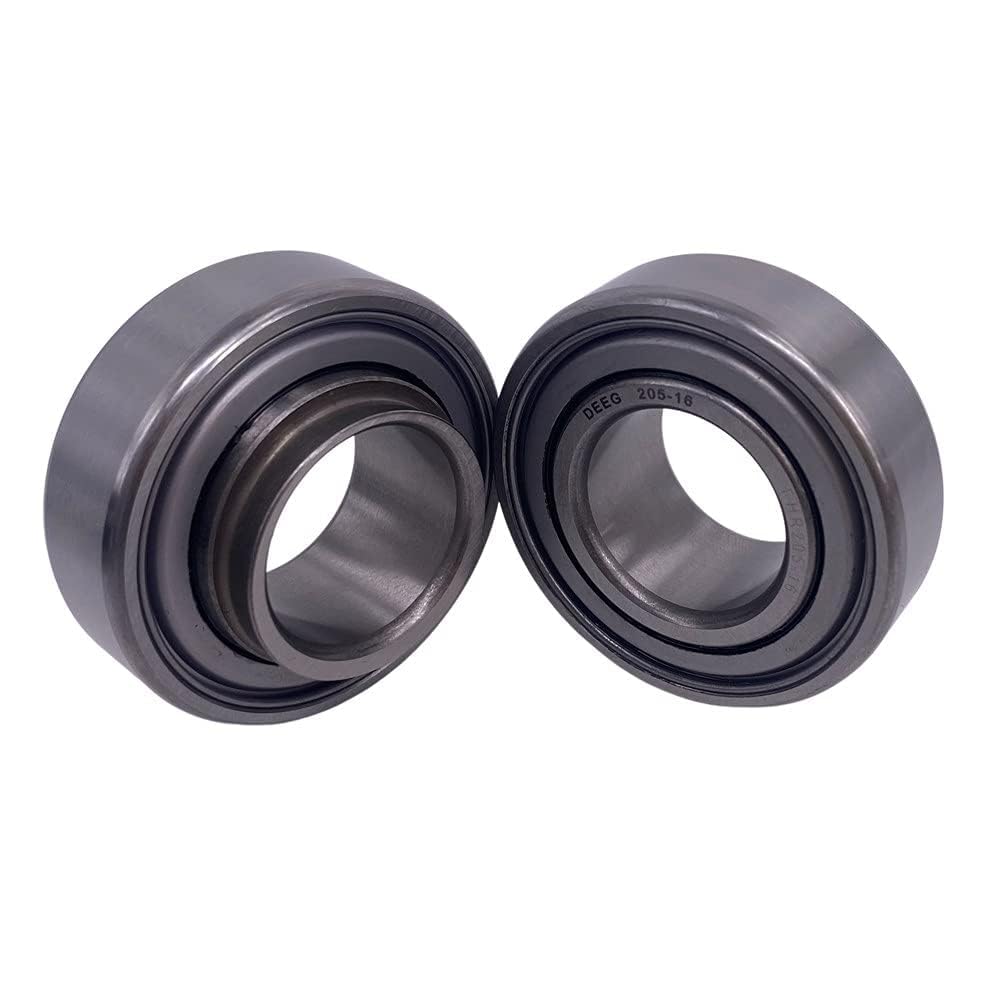

  1. 1" CSA205-16 Insert bearing-Cylindrical outer diameter bearing with eccentric lock ring
  2. Inner hole: 25.4mm(ID:1.000")
  3. Foreign Economics: 52mm(OD:2.045")
  4. Outer ring height; 15mm

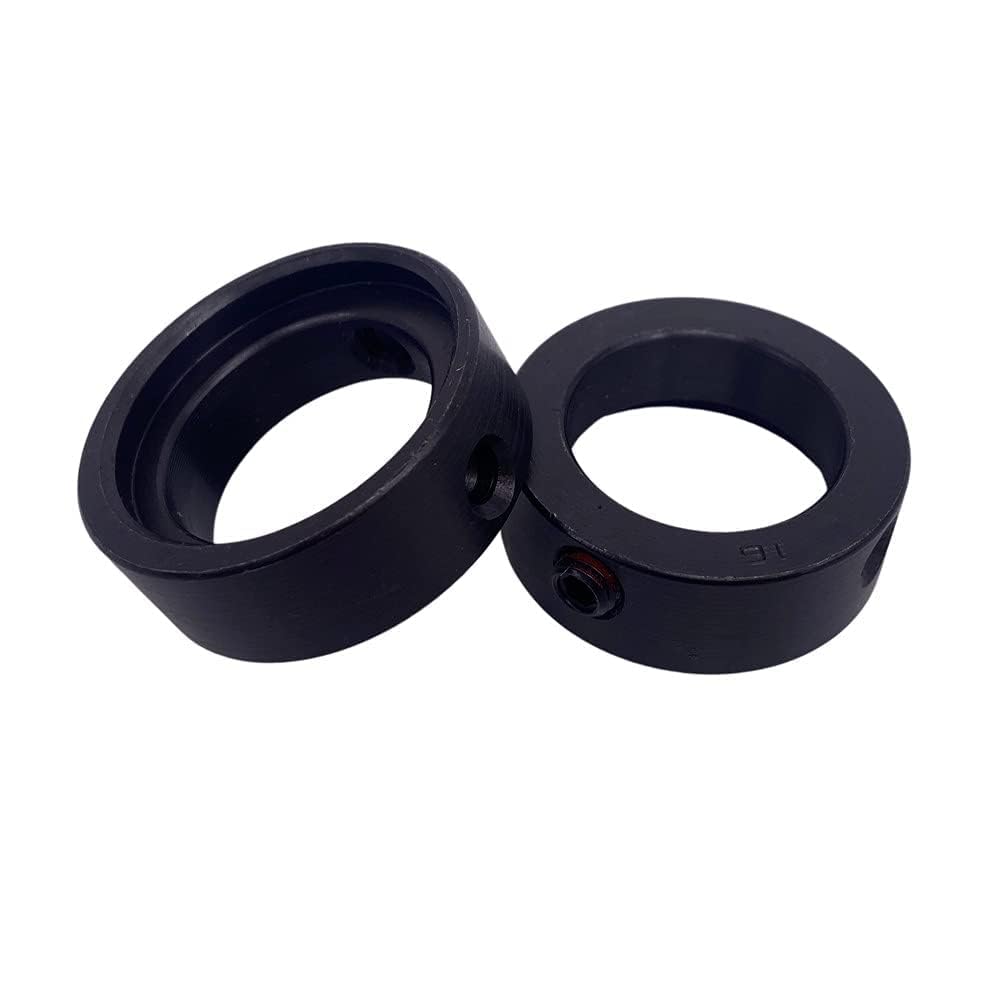

  5. Height with eccentric sleeve: 21.3mm(0.839")

CSA205-16油脂

Grease

  1. Temperature; -20°--180°
  2. Temperature; -20--180
  3. Grease uses friction resistance, reduces noise and increases lubrication
  4. Added waterproof effect

CSA205-16油封

Composite dust cover

  1. The dust cover adopts a composite method
  2. There is the resistance of the iron seal and the dustproof ability of the rubber seal
  3. Better prevent the entry of dust and water, and increase the life of the machine.


  1. Replaces (OEM): 784223 077123
  2. Bobcat: 38348-01
  3. Bunton: PL7323
  4. Cub Cadet: 455102-R21, 586609-R92, 60069C91, IH-455102-R21, IH-455102-R22, IH-586609-R92, IH-60071-C91, IH-60071-C92
  5. Dixon: 1701, 539115279
  6. Exmark: 1-513016
  7. Grasshopper: 120081
  8. Husqvarna: 539102677, 539107406, 539115279
  9. Hustler: 077123, 784223
  10. John Deere: 8597, JD8597
  11. Ref No: CSA205-16
  12. Walker: 5270
  13. Woods: 60006 7006
  14. Fits Models:
  15. Bobcat: 61" ZT 200, Serial No.942200-942299 rider cutter decks; 36" and 48", Serial No.930000-930328 fixed cutting decks; varable speed 934104 and XM Series; 36", 48", 54" and 61" floating decks; 36", 48", 54 and 61" XM Series walk behinds,38348-01
  16. Cub Cadet: 100, 102, 122 and 123
  17. Dixie Chopper: 50", 60" and 72" XXW Series Decks ,30218
  18. Exmark: Turf Tracer and Turf Ranger, Serial No.160,000-259,999; Lazer Z, Turf Ranger, Turf Tracer, Lazer Z HP, Metro HP, and Turf Tracer HP ,Serial No.160,000-370,000; 44", 48" and 52" Lazer Z HP, Serial No.160,000-370,000; 36", 48" and 52" Turf Tracer HP, Serial No.150,000-260,000; 36", 48" and 52" Metro and Viking, Serial No.90,000-190,000; Viking Hydro and Metro 32", 36", 48", and 52", Serial No.160,000-219,000; 60" and 72" Lazer XP, Serial No.260,000-540,000; Turf Tracer hydro with floating decks, Serial No.190,000-higher; 52", 60" and 72" Lazer Z deck group, Serial No.102,000-370,000, 513016
  19. Grasshopper: 9048, 52" and 61" decks 120081
  20. Gravely: Pro Master 250 Z and 260 Z
  21. Husqvarna: LZ with 52", 60" and 72" decks
  22. Hustler: 52", 60" and 72" Super Z, 2002-2007, excluding XR-7 deck and Fastrac 44" and 52" decks
  23. John Deere: 300-317 hydrostatic tractor; M653-M655 ZTrak
  24. Toro: 74269 with 72" decks

MODEL BORE SIZE
TYPE OUT. DIAMETER
MATERIAL RPM
CLEARANCE DYNAMIC LOAD
WIDTH STATIC LOAD
