Replace Craftsman Riding lawn mower front wheel bushing to bearing 532009040 9040h 532124959 583670401 M123811 5920H 9040HR 9040N 5321249：Courtyard、Lawn and garden
A simple illustration of a bushing conversion bearing. Please note that the hub bore diameter must be 35 mm, and the shaft diameter is 3/ 4inch . Correct illustration for...
SKU:
F202黑色滚针
Availability:
5000
In stock
Order within the next hours minutes to receive it. Estimated delivery is between and
Taxes, discounts and shipping calculated at checkout.
Regular price
$16.99
Regular price
$16.99
Sale price
$16.99
Unit price
per
Couldn't load pickup availability
Replace Craftsman Riding lawn mower front wheel bushing to bearing 532009040 9040h 532124959 583670401 M123811 5920H 9040HR 9040N 5321249：Courtyard、Lawn and garden
Regular price
$16.99
Regular price
$16.99
Sale price
$16.99
Unit price
per
A simple illustration of a bushing conversion bearing. Please note that the hub bore diameter must be 35 mm, and the shaft diameter is 3/ 4inch .
Correct illustration for replacing bushings
Advantage: Our Premium Quality Bearings Come Standard With High Temperature, High Wear Resistant Grease for Long Life.Seal - Preserve grease and prevent impurities from entering.Compared with Bushings, bearings have lower friction and longer life, reducing your maintenance time and costs.

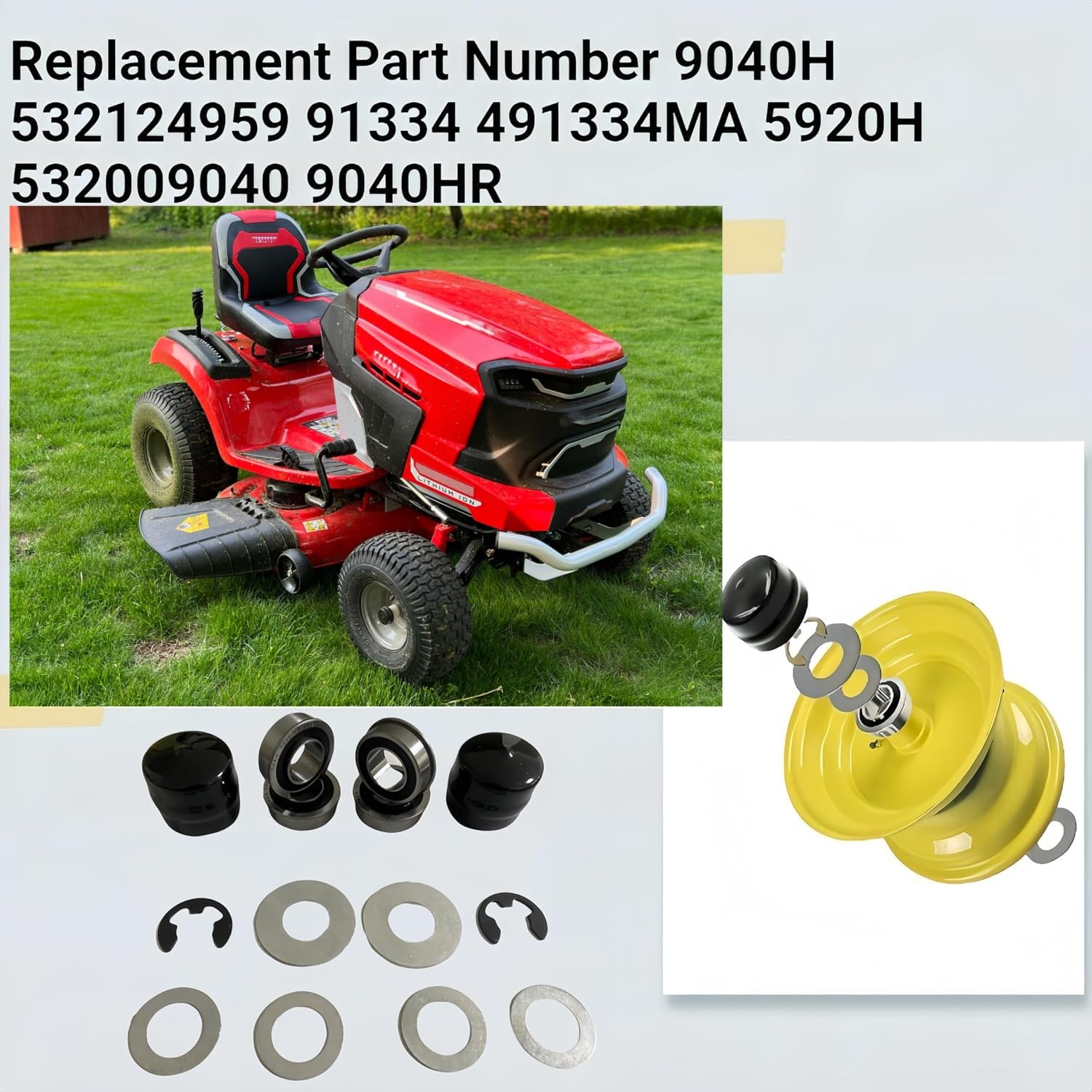

Front Wheel Bushing to Bearing Conversion Kit
wheelbarrow wheel bearings
Mounting type 3/4" inch bore, for use with flat free wheels up to 1-3/8" inch hub, suitable for lawn mower, wheelbarrows, garden carts, hand trucks,
hub cover
2PCS hub cover The current part number 532104757 replaces the previous part numbers 175039, 104757X428, 532175039, 104757X, 104757X417 and 2118R
Thrust washer washer E-clip
32188967 532121749 812000029 121748X 121749X 583512801 532436874
3 / 4 ball bearing upgrade
Digital display caliper(1)
Resolve customer feedback :
1 .Based on customer feedback of 19.05mm, we have enlarged the inner hole to allow the bearing to better enter the shaft.
2.We have upgraded and thickened the material to solve the problem of fracture
Bearing table measuring instrument (2)
The picture on the screen is a special bearing error meter, which can measure the bearing error with an accuracy of ±0.01mm.This is a composite industry standard.We use this instrument to complete the measurement and inspection in the production process
Bearing grease(3)
Bearing grease, we use low temperature - 20℃ - 120℃ grease, which is no problem for the use of a lawnmower, this grease can play a role in lubrication, reduce noise and friction, reduce the pressure of the bearing when rotating
Is the bearing seal the mower easy to fall off?

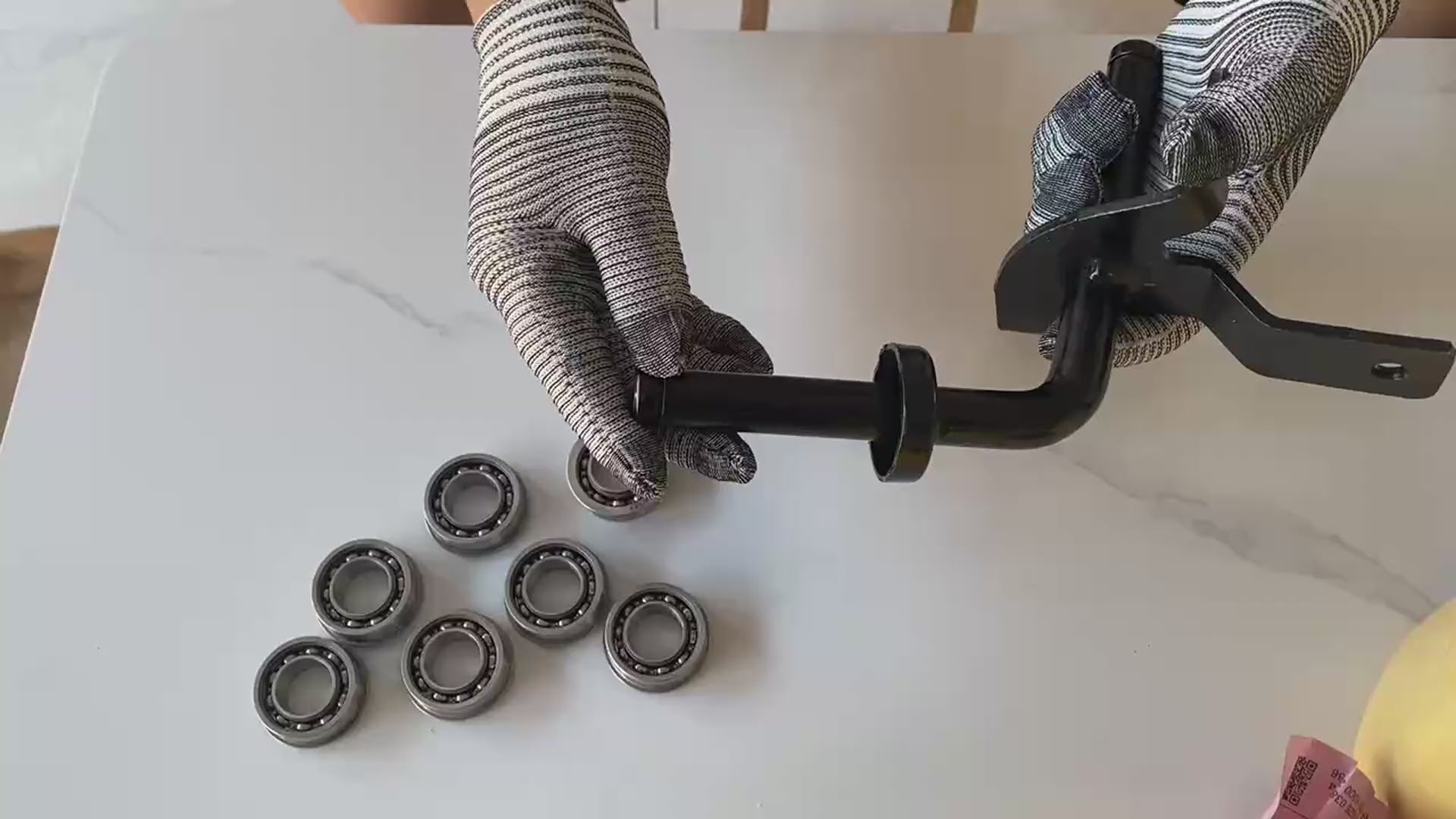

1.As for the problem of bearing seal separation, we have uploaded the video. You can see the
tightness between the bearing and the seal cover in the top video
2.Why convert front wheel bushings to bearings?
Because there are no balls in the bushing, the bearing can move the tire more easily, increasing the use of
3.The height of the bearing is 1/2 (12.7mm) but the height of the Bushing is 1.375" (1-3/8") will it affect the lawn mower wheel?
It will not have any effect.The replacement of bearings will be your better choice.

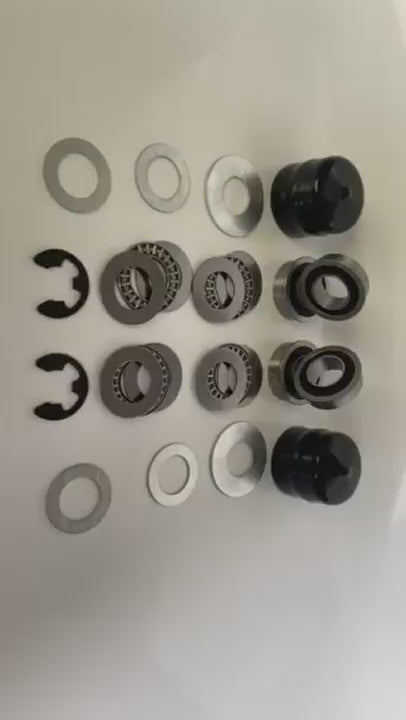

Riding mower front wheel bearing kit
Application:
- Bearing mounting type 3/4" inch hole, can be used with wheels up to 1-3/8" inch, suitable for lawn mowers, wheelbarrows, garden carts, trolleys, high pressure washers, generators, air compressors, etc..
- The known replacement codes/the following codes are for reference only, please take the product size as the standard.
- Replaces for Husqvarna Craftsman Poulan Jonsered AYP 121748X 121749X 12000029-John Deere M123811 M123253 R27434 24H1398 Z9972H
- Replaces for 532009040, 13359, 9040H, 532124959, 5920H, 9040HR and 9040N.941-0141, AM118315, AM127304, AM35443, M123811.
- Replaces for 741-0141, IH-384881-R94, 941-0141.60611, 60011, 60010.05408900, 05416200.Lynx: 2188123-03.P0209, PLO941.
- 384881-R93, 384881-R94, C12110.IH384891-R94, 384881-R93, IH384891-R94, 05408900.011193, 036778, 05408900, 037823.
- 1-0953, 1-2390, 1-5474, 2-6693, 7028722, 7028722YP, 1305379.110513, 251-210.GT6000 GT3000 yth24v48 960450046
- We have added a more detailed table of suitable riding lawn mower models to the product images, so you can easily confirm the suitability of this bearing kit according to the make and model of your lawn mower. There may be models or mower models that we haven't sorted out, so you can check if they fit based on the size of the bushing
